識別產品Microscan邁思肯掃描器歡迎來電咨詢Microscan邁思肯掃描器價格和型號：020-87030040。

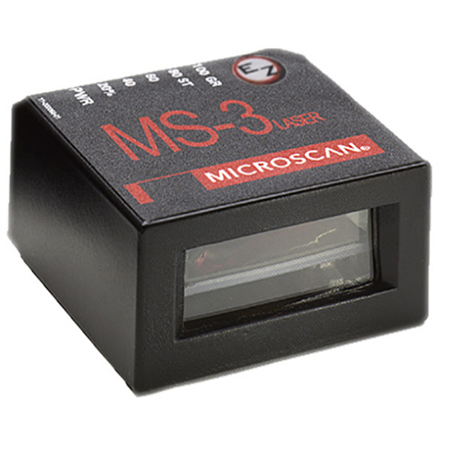

在嵌入式小型條碼掃描器中，MS-3 Laser 具有速度最快的讀取性能。70 度的廣闊掃描角度，并具有小型的尺寸和靈活的安裝方式。

MS-3激光條碼掃描儀在嵌入式緊湊型條碼掃描器中提供快速的讀取性能。 70度的寬掃描角度與超緊湊尺寸和靈活安裝相結合。

高性能和靈活性使MS-3成為嵌入式儀器可靠讀取的良好選擇。

緊湊輕巧：1.75英寸（44.5毫米）方形，85英寸（21.6毫米）高的掃描儀重量只有57克，便于安裝在機器人設備或狹小的空間。

高掃描速度：可調節掃描速度從每秒300到1000個解碼，歐姆龍邁思肯世界級的解碼算法確保每次都能準確讀取。

掃描角度寬：超過70度的寬掃描角度和工廠定制的焦點加起來可以節省系統內的空間，從而允許更大的靈活性定位。

可見指示燈：掃描儀頂部的照明LED提供對掃描儀性能的視覺確認。

實時控制：輸入包括觸發信號，“新主控”輸入和用于復位計數器或釋放輸出的可編程輸入。輸出可以被配置為在包括匹配碼和診斷操作的各種條件下激活。

Microscan邁思肯MS-3小型條碼掃描器型號表
Part Number	Description
FIS-0003-0001G	Laser, Single Line, Low Density
FIS-0003-0002G	Laser, Single Line, High Density
FIS-0003-0003G	Laser, Raster, Low Density
FIS-0003-0004G	Laser, Raster, High Density
FIS-0003-0005G	Laser, Single Line, Low Density, Right Angle
FIS-0003-0007G	Laser, Raster, Low Density, Right Angle

艾韋迅IVYSUN是Microscan邁思肯掃描器的中國區核心經銷商，貨源充足、確保正品。專業的Microscan邁思肯掃描器產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://www.ourdream.net.cn)。

Microscan邁思肯MS-3超小型條碼掃描器特點

高性能與靈活性使 MS-3 Laser 成為嵌入式掃描設備中閱讀性能可靠的理想之選。

體積小巧，機身輕盈

高速掃描

廣闊的掃描角度

可見指示器

實時控制

線性條碼
PDF417
MicroPDF

Microscan邁思肯MS-3超小型條碼掃描器配件表
Part Number	Description
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890
61-000127-02	Cable, MS-2 to MS-Connect 210, 6 ft
FIS-0001-0030G	IB-3PC Keyboard Wedge/Interface Box
98-000051-01	IC-3USB, USB Conversion Kit
FIS-0001-0035G	IC-332, Connects MS-2 to IB-131
99-000018-01	IB-131, Interface Box
98-000039-02	Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer
61-300026-03	Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft
61-000010-02	Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft
61-000011-02	Cable, MS-820 to IB-131 (also use for MS-2, 3, 4, 9, 710 and MINI Extension)
61-100029-03	Cable, IB-131 Daisy Chain, 1 ft
20-500013-01	DeviceNet Protocol Box
Power Supplies
97-000002-01	Power Supply, 90-264 VAC,+5VDC, USA /Euro Plug (use with IB-3PC)
97-100004-15	Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332)
Mounting and Connectors
98-000048-01	Mounting Arm/Adapter Kit, 4 inch, MS-2, MS-3
98-000054-01	Kit, Mounting Stand Base Plate, MS-2, MS-3
98-000053-01	Extension Kit, 4 inch, MS-2, MS-3
98-000053-02	Mounting Arm Extension Kit, 3 inch, MS-2, MS-3
98-000060-01	Kit, Bracket, Side Mount, MS-2, MS-3
98-000059-01	Kit, Bracket, Angle Mount, MS-2, MS-3
98-000057-01	Kit, Bracket, Through Hole Mount, MS-2, MS-3
98-000058-02	Kit, Extended Right Angle Mirror, MS-2, MS-3
98-000061-03	MS-2, MS-3 to MS-520/MS-525, Bracket Conversion Kit
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131)
20-610020-01	Power Connector, 3-pin Socket (screw terminal and field wireable for custom wiring into IB-131)
Package Detector/Sensor
99-000017-01	Photo Sensor, Visible, NPN, DARK ON (for use with IB-131)
99-000017-02	Photo Sensor, Visible, NPN, LIGHT ON (for use with IB-131)
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software
