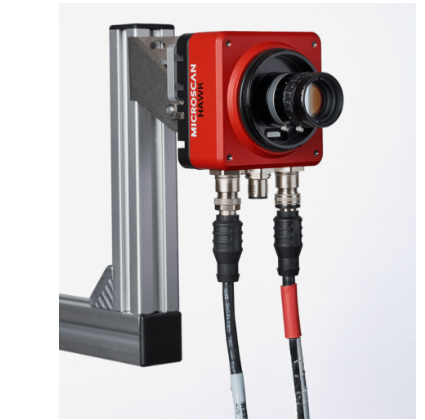

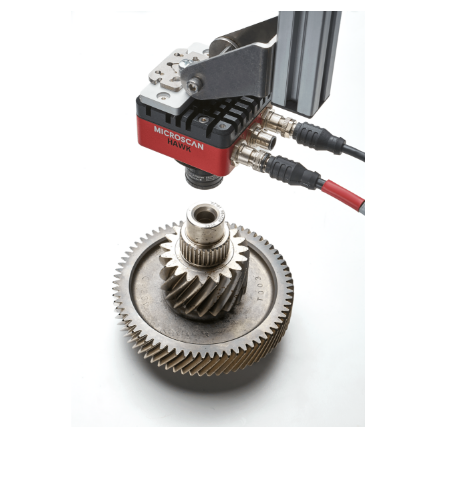

邁思肯Microscan HAWK MV-4000 智能相機
邁思肯Microscan HAWK MV-4000 智能相機
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • HAWK MV-4000堅固的外殼內裝有令人驚嘆的處理能力和優異的靈活性。 這款智能相機采用FPGA，將上一代的處理能力提高了數倍，實現了實時觸發響應。擁有領先的算法，HAWK MV-4000可以成為各行業實現代碼閱讀，代碼驗證，檢查，引導定位，測量或各種組合功能的理想工具。

    HAWK MV-4000的以圖像為中心的用戶界面和拖放式編程使設置變得簡單。 普通的操作員或技術人員會喜歡直觀的AutoVISION用戶界面（UI），可以使用讀取，驗證和視覺工具隨時讀取。機器視覺方面的專家將可以訪問另一個名為FrontRunner的界面，以獲得HAWK MV-4000的全部潛力。

    擁有幾乎達到基于PC系統速度的處理能力，這個智能相機可以真正實現以一當十。 IVision的工程師們把它稱為基于PC的相機和市場上普通的智能相機之間的“黃金中心”。 使用HAWK MV-4000，不需要外部處理即可達到每分鐘4,000至14,000個零件的檢查率。



    邁思肯Microscan HAWK MV-4000 智能相機型號表
    Part NumberDescription
    8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
    8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
    8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
    8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
    1.3 MP Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
    8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
    8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
    8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
    2.0 MP Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
    8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
    8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
    8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
    5.0 MP Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
    8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
    8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
    8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
    0.3 MP Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
    8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
    8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
    8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
    1.3 MP Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
    8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
    8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
    8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
    2.0 MP Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
    8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
    8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
    8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
    5.0 MP Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
    8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
    8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
    8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




    HAWK 4000 LENSES AND LENS CAPS
    Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
    98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
    98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
    98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
    98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
    98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
    98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
    High Resolution for 2/3" Sensors - (Gauging, Verification)
    98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
    98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
    98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
    98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
    98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
    98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
    High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
    98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
    98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
    98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
    98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
    C-Mount Liquid Lens
    98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
    98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
    Lens Accessories
    98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
    98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




    HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
    HAWK 4000 X-CODE Ethernet Port Cables
    61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
    61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
    61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
    HAWK 4000 VGA/USB Port Connector Cables
    61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
    61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
    HAWK 4000 Digital IO Port Connector Cables
    61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
    61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
    QX-1 Interface Cables and Accessories
    61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
    61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
    98-000103-02 QX-1 INTERFACE DEVICE
    99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
    99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
    20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    SMART LIGHT CONTROL CABLES
    61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
    61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
    61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
    61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
    61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
    61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
    Power Supply
    97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




    HAWK 4000 AND SMART LIGHT MOUNTS
    Standard Mounts
    TBDUNIVERSAL MOUNT, HAWK 4000
    98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
    Smart Light/HAWK 4000 Mounting Kits
    98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
    98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
    98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
    98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
    98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




    LICENSING
    HAWK 4000 License Upgrades
    LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
    LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
    LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
    LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
    LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




    Camera Kits - with License, Lens, IP Cover and Mount
    0.3 MP, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, High Res Lens
    8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, High Res Lens
    8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    5.0 MP, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
    8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
    8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT


    型號

    HAWK MV-4000-03

    HAWK MV-4000-03C

    HAWK MV-4000-13

    HAWK MV-4000-13C

    HAWK MV-4000-20

    HAWK MV-4000-20C

    HAWK MV-4000-50

    HAWK MV-4000-50C


    傳感器

    品牌和型號

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    類型

    CMOS

    芯片尺寸

    1/4”-Type

    1/2”-Type

    2/3”-Type

    1”-Type

    格式

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    分辨率 (H x V)

    640 x 480

    1280 x 1024

    1920 x 1200

    2592 x 2048

    有效幀率

    最高 240 FPS

    最高 120 FPS

    最高 75 FPS

    最高 32 FPS

    最高 42 FPS

    最高 20 FPS

    最高 21 FPS

    最高8.5 FPS

    像素尺寸 (H x V)

    4.8 μm x 4.8 μm

    增益范圍

    0 至 19.4 dB

    快門速度

    50 μsec 至 4 sec

    觸發器響應

    外部觸發器輸出延遲 = 10μs。 抖動= 1 - 2μs。


    處理器，內存及存儲

    處理器

    雙核

    內存

    2GB RAM

    存儲

    32GB


    接口

    網絡

    千兆以太網

    HMI

    VGA 和 USB 2.0 (連接鍵盤和鼠標)

    數字 I/O

    3個光耦輸入（帶增量旋轉編碼器支持），1個專用光耦觸發，3個外部選通輸出

    其他

    Varioptic Caspian 自動對焦鏡頭專用接口


    機械，電氣，環保

    鏡頭類型

    C-Mount

    連接器

    M12 8針以太網插座; M12 12針插座，用于電源，數字I / O和LED照明強度控制; M12 12針插頭用于VGA和USB

    重量

    460 g

    能量消耗

    450 mA @ 24VDC 或 10.8W (一般情況)



    邁思肯Microscan HAWK MV-4000 智能相機附件表



    This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
    HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
    0.3 Megapixel Mono
    8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
    8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
    8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
    8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
    8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
    8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
    8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
    8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
    8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
    8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
    8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
    8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
    8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
    0.3 Megapixel Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
    8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
    8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
    8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
    8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
    8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
    8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
    8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
    8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
    8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
    8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
    8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
    8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
    HAWK MV-4000 Lenses and Lens Caps
    Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
    98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
    98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
    98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
    98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
    98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
    98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
    High Resolution for 2/3" Sensors (Gauging, Verification)
    98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
    98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
    98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
    98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
    98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
    98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
    High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
    98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
    98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
    98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
    98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
    C-Mount Liquid Lens
    98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
    98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
    Lens Accessories
    98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
    98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
    HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
    HAWK MV-4000 X-CODE Ethernet Port Cables
    61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
    61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
    61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
    HAWK MV-4000 VGA / USB Port Connector Cables
    61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
    61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
    HAWK MV-4000 Digital I/O Port Connector Cables
    61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
    61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
    QX-1 Interface Cables and Accessories
    61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
    61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
    98-000103-02QX-1 Interface Device
    99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
    99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
    20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    Smart Series Illuminator Control Cables
    61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
    61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
    61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
    61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
    Power Supply
    97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
    HAWK MV-4000 and Smart Series Illuminator Mount
    Standard Mount
    98-9000054-01APG Mount, HAWK MV-4000 (Requires Universal Mount)
    Smart Series Illuminator / HAWK MV-4000 Mounting Kits
    98-9000120-01Kit, Bracket, MAX 300 to HAWK MV-4000
    98-9000121-01Kit, Bracket, DOAL to HAWK MV-4000
    98-9000122-01Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
    98-9000123-01Kit, Bracket, Ring 100 to HAWK MV-4000
    98-9000137-01Kit, Smart Series Pharmalite, HAWK MV-4000
    Licensing
    HAWK MV-4000 License Upgrades
    LIC-0700-003*License, Machine Vision, AutoVISION
    LIC-0700-006*License, Machine Vision, Visionscape
    LIC-0700-009*License, Machine Vision,Verification / OCV
    LIC-0700-011*License, Machine Vision, AutoVISION Sensor
    LIC-0700-325*License, Machine Vision, Machine Vision Unlock
    Camera Kits with License, Lens, IP Cover, and Mount
    0.3 Megapixel, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8111-1160-0102HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    1.3 Megapixel, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
    8112-1250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
    1.3 Megapixel, High Resolution Lens
    8212-2160-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8212-2250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8212-2350-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Megapixel, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
    8113-1350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
    2.0 Megapixel, High Resolution Lens
    8213-2160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8213-2250-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8213-2350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8117-1160-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    8117-1350-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
    5.0 Megapixel, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
    8214-3250-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
    8214-3350-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount


    邁思肯Microscan HAWK MV-4000 智能相機應用



    汽車零件，電子行業，制造行業，模具行業等

    相關產品

    相關文章

  • 工業讀碼器和工業相機的區別是什么？2021-02-03
    • 日韩亚洲国产中文字幕| 久久99精品久久久久久久青青日本 | 插我舔内射18免费视频| 国产精品久久久久国产a级| 欧美日韩国产一区二区三区| 天天综合网在线| 新91视频在线观看| 亚洲毛片aa| 久久6精品影院| 精品成人在线视频| 久久亚洲国产精品一区二区| 图片区偷拍区小说区| 狠狠色综合欧美激情| 亚洲乱码av中文一区二区| 久久久精品国产99久久精品芒果 | 欧美亚洲在线播放| 色先锋aa成人| 国产精一区二区三区| 国产性70yerg老太| 欧美性大战久久久久xxx| 国产精品美女av| 日韩欧美国产精品| 久久久亚洲高清| 91影院在线播放| 欧美一区免费视频| 欧美亚洲日本一区| 国产成人精品网址| 欧美一区二区三区网站| 四季av一区二区| 懂色一区二区三区av片| 国产一区二区三区毛片| 亚洲444eee在线观看| 久久超级碰视频| 国产九色在线播放九色| 亚洲成人手机在线观看| 精品一区二区国产| 久久精品在线视频| 欧美性生活一区| 久久久影视传媒| 亚洲xxxx天美| 九九热最新地址| 欧美一级黄色片视频| 痴汉一区二区三区| 久久97精品久久久久久久不卡| 色av成人天堂桃色av| 成人av影院在线| 国产美女精品视频国产| 波多野结衣家庭教师在线观看| 一女被多男玩喷潮视频| 国产精品一区在线观看| 久久久久久久久久久久久久久久久久av| 欧美视频一区二区三区在线观看 | 91九色国产在线| 亚洲性夜色噜噜噜7777| 欧美性猛交xxxx乱大交极品| 成人自拍视频在线| 国产夫妻自拍av| tube国产麻豆| 992kp免费看片| 日韩 欧美 自拍| 成人国产精品一区二区| 日韩中文字幕在线免费观看| 欧美丝袜丝交足nylons| 国产精品网友自拍| 久久精品国产久精国产爱| 超碰在线免费97| 日韩福利在线视频| 爽爽爽在线观看| 高清无码一区二区在线观看吞精| 亚洲影院高清在线| 欧美丰满片xxx777| 亚洲精品乱码久久久久久金桔影视| 一区二区在线免费| 99久久婷婷国产综合精品| 少妇人妻一区二区| 婷婷激情五月综合| 波多野结衣久久久久| 色网站在线视频| 黄网站色视频免费观看| 久久精品日产第一区二区三区精品版 | 中文字幕免费精品一区| 777午夜精品免费视频| 一区二区三区成人| 91在线视频播放| 蜜桃av噜噜一区| 国产青青草视频| 91国产丝袜播放在线| 亚洲女优在线观看| 精品国产aⅴ一区二区三区东京热| 久久亚洲精品无码va白人极品| 欧美日韩国产高清视频| 成人两性免费视频| 国产91av在线| 欧美成人精品一区二区| 日韩精品中文字幕久久臀| 欧美男男青年gay1069videost | 欧美日韩在线视频播放| 青青草手机视频在线观看| 日本一区二区三区网站| 日韩在线一区视频| 日本成年人网址| 中国女人做爰视频| 亚洲国产高清国产精品| 精品国产乱码久久久久久丨区2区 精品国产乱码久久久久久蜜柚 | 亚洲 欧美 激情 另类| 一级片免费观看视频| 欧美一级视频免费观看| 色婷婷久久久久swag精品| 色一情一区二区三区| 激情综合网五月天| 亚洲国产精品黑人久久久| 久久成人av网站| 欧美 亚洲 视频| 99在线精品视频免费观看软件| 欧美日韩国产一区二区| 99re6热在线精品视频播放速度| 欧美日韩日本网| youjizz.com国产| www.av黄色| 国产精品网站在线播放| 国产精品免费一区二区三区都可以| 激情五月婷婷小说| 日韩美女久久久| 日本一区二区视频| 亚洲国产精彩视频| 亚洲bt欧美bt日本bt| 91视频观看视频| 国内自拍视频网| 一区二区三区中文免费| 色婷婷.com| 狠狠躁天天躁日日躁欧美| 久久66热这里只有精品| 无码精品视频一区二区三区| 国产精品美女www| 久热精品在线| 玛丽玛丽电影原版免费观看1977| 亚洲色图欧美视频| 久久偷看各类女兵18女厕嘘嘘| 亚洲天堂av中文字幕| 亚洲6080在线| 成人免费观看cn| 国产精品国产三级国产aⅴ原创 | 美国十次了思思久久精品导航| 欧美美女激情18p| 美乳视频一区二区| a级片免费观看| 国产999视频| 亚洲精品视频在线观看免费视频| 葵司免费一区二区三区四区五区| 91成人在线播放| 日韩中文字幕高清| 亚洲xxxxx电影| 国产精品久久久久永久免费观看 | 老**午夜毛片一区二区三区| 欧美成人激情图片网| 久一区二区三区| 国产一区二区三区在线看| 亚洲区免费视频| 国产成人精品一区二区三区四区 | 亚洲av成人精品日韩在线播放| 久久免费少妇高潮久久精品99| 国产精品丝袜一区二区| 色天天综合久久久久综合片| 九九九久久久久久久| 色一情一乱一乱一91av| 国产老头老太做爰视频| 成人黄色av网站| 国产精品夫妻自拍| 91视频啊啊啊| www日韩欧美| 成人在线免费看视频| 久久精品99久久香蕉国产色戒| 黄色一级片中国| 在线播放日韩av| 国产一级视频在线| 亚洲免费伊人电影在线观看av| 国产一二三四五| 欧美一区二区公司| 久久久极品av| 国产国语性生话播放| 日韩精品最新网址| 免费在线观看黄色小视频| www国产成人| 欧美狂野激情性xxxx在线观| 久久久亚洲精品石原莉奈| 国产97在线 | 亚洲| 亚洲成av人**亚洲成av**| 欧美视频国产视频| 亚洲福利视频一区二区| 男人靠女人免费视频网站 | 主播福利视频一区| 亚洲精品在线视频免费观看| 国产精品麻豆欧美日韩ww| 国产精品一区二区三区观看| 国产又大又黄的视频| 日韩中文字幕在线精品| 国产精品久久欧美久久一区| 99re在线国产| 成人国产在线观看| 黄网站欧美内射| 欧美一区二区在线观看| wwwwww国产| 国产精品日日摸夜夜添夜夜av| 国产伦精品一区二区三区免费迷 | 99riav久久精品riav| 97视频免费在线看| 久久伊人成人网| 宅男66日本亚洲欧美视频| 中文字幕电影av| 亚洲国产成人精品女人久久久| 免费在线观看h片| 5566成人精品视频免费| 高清不卡一区二区在线| 国产精品免费看久久久无码| 国产三级欧美三级日产三级99 | 欧美精品在线观看91| 中国一区二区视频| 宅男av一区二区三区| 欧洲一区二区三区在线| 亚洲精品国产一区二| 午夜一级免费视频| 清纯唯美亚洲综合| 一区在线观看视频| 国产极品一区二区| 欧美大胆人体bbbb| 日韩免费av片| 91久久国产婷婷一区二区| av不卡一区二区三区| 一级黄色大片免费看| 高跟丝袜欧美一区| 国产伦理在线观看| 欧美精品亚洲一区二区在线播放| 玖玖爱在线观看| 日韩电影视频免费| 久久综合导航| 日本午夜激情视频| 在线视频一区二区| 首页亚洲欧美制服丝腿| 午夜影院免费版| 国产经典一区二区| 6080午夜不卡| 成av人片一区二区| 国产精品亚洲欧美在线播放| 亚洲av无码成人精品国产| 欧美日韩一区二区三区在线视频 | 国产片一区二区| 日韩aaaaa| 久久中文字幕在线视频| 99亚偷拍自图区亚洲| 人人妻人人澡人人爽人人精品| 一区二区三区视频观看| 日韩专区第一页| 日韩小视频网站| 欧美高清激情视频| 99精品视频在线观看免费| 欧洲金发美女大战黑人| 精品久久久久久中文字幕大豆网 | 川上优av一区二区线观看| 亚洲大尺度视频在线观看| 精品国产一级片| 一本一道久久a久久精品综合 | 一级在线免费视频| 日本最新高清不卡中文字幕| 欧美性淫爽ww久久久久无| 黑人精品欧美一区二区蜜桃| 亚洲AV无码久久精品国产一区| 91国产精品电影| 成人av资源站| 亚洲第一综合网| 国产欧美一区二区三区视频 | 久久久国产成人| 久久久久久久久久av| 国产精品资源在线观看| 奇米影音第四色| 一区二区欧美激情| 美腿丝袜亚洲三区| 爱情岛论坛亚洲自拍| 成人免费福利视频| 欧美精三区欧美精三区| 91 中文字幕| 麻豆三级在线观看| 国产精品欧美在线| 亚洲欧美激情精品一区二区| 国产日韩亚洲欧美综合| 精品国产免费无码久久久| 精品人妻互换一区二区三区| 成人h片在线播放免费网站| 精品免费在线观看| 99riav国产| 波多野吉衣在线视频| 99re国产视频| 亚洲人成啪啪网站| 国产日韩精品一区二区三区 | 性xxxx搡xxxxx搡欧美| 亚洲人视频在线| 成人在线观看网址| 色av一区二区| 丰满人妻一区二区三区四区| 超碰在线免费观看97| 亚洲欧美日韩天堂| 国产精品77777竹菊影视小说| 久久精品女同亚洲女同13| 日韩精品一区二区三区四区五区 | 亚洲欧美电影在线观看| 久久久久久久久久av| 亚洲第一久久影院| 国产精品狼人久久影院观看方式| 欧美aaa在线| 中文字幕日韩经典| 天天操天天干视频| 久久黄色小视频| 秋霞网一区二区三区| 亚洲第一香蕉网| 丰满少妇在线观看| 精品免费国产一区二区| 日本免费在线视频观看| 国产欧美日韩伦理| 国产亚洲精品久久久久久牛牛 | 国产v在线观看| 久久国产高清视频| 佐山爱在线视频| 国产精品手机在线| 久久综合色88| 欧美亚男人的天堂| 99在线精品免费| 日本波多野结衣在线| 亚洲av少妇一区二区在线观看| 久久精品视频1| 一级黄色电影片| 亚洲综合激情五月| 97久久夜色精品国产九色| 欧美日韩成人免费| 国产丶欧美丶日本不卡视频| 久久精品视频5| 中文字幕求饶的少妇| 午夜国产福利在线观看| 欧美久久综合性欧美| 中文字幕日韩精品在线观看| 欧美精品一卡二卡| 欧美日韩视频在线| 国产98色在线|日韩| 久久亚洲视频| 亚洲天堂中文网| 亚洲一级av毛片| 日韩av在线天堂| 欧美熟妇激情一区二区三区| 妺妺窝人体色www在线观看| 成人在线精品视频| 91国内在线视频| 日韩欧美另类在线| 色综合婷婷久久| av一本久道久久综合久久鬼色| a级片在线播放| 久久久久黄色片| 亚洲av人人澡人人爽人人夜夜| 一女二男3p波多野结衣| 天堂在线中文在线| 亚洲成a人无码| 免费日韩在线视频| 妺妺窝人体色WWW精品| 日本男人操女人| 人人妻人人澡人人爽欧美一区 | 亚洲综合清纯丝袜自拍| 亚洲va欧美va| 影音先锋国产在线| 欧美brazzers| 91久久国产视频| 中文字幕欧美在线观看| 手机在线精品视频| 蜜臀久久99精品久久久久久9 | 亚洲精品一区二区在线| 欧美日韩一区二区欧美激情| 亚洲国产一区二区a毛片| 国产亚洲精久久久久久| 国产69精品久久久久777| 国模无码大尺度一区二区三区| 免费成人在线网站| 手机精品视频在线观看| 伊人亚洲综合网| 国产第一页第二页| 91美女免费看| 久操视频在线免费观看| 少妇高潮av久久久久久| 空姐吹箫视频大全| av中文字幕不卡| 亚洲v日本v欧美v久久精品| 黄色精品一区二区| 欧美图片一区二区三区| 日韩视频国产视频| 中文字幕亚洲一区在线观看 | 亚洲国产精彩视频| 囯产精品一品二区三区| 无码国产色欲xxxx视频| 日本午夜精品视频在线观看 | 精品无码人妻一区二区免费蜜桃| 一本一道无码中文字幕精品热| 蜜臀久久久99精品久久久久久| 中日韩av电影| 亚洲第一页自拍| 97精品视频在线| 99在线视频首页| 日韩影院一区| 黄色网络在线观看| 亚欧激情乱码久久久久久久久| 欧美伦理视频在线观看| 国产精品嫩草影院俄罗斯| 一区二区 亚洲| 日韩一区精品字幕| 久久综合九色综合97婷婷| 色又黄又爽网站www久久|
